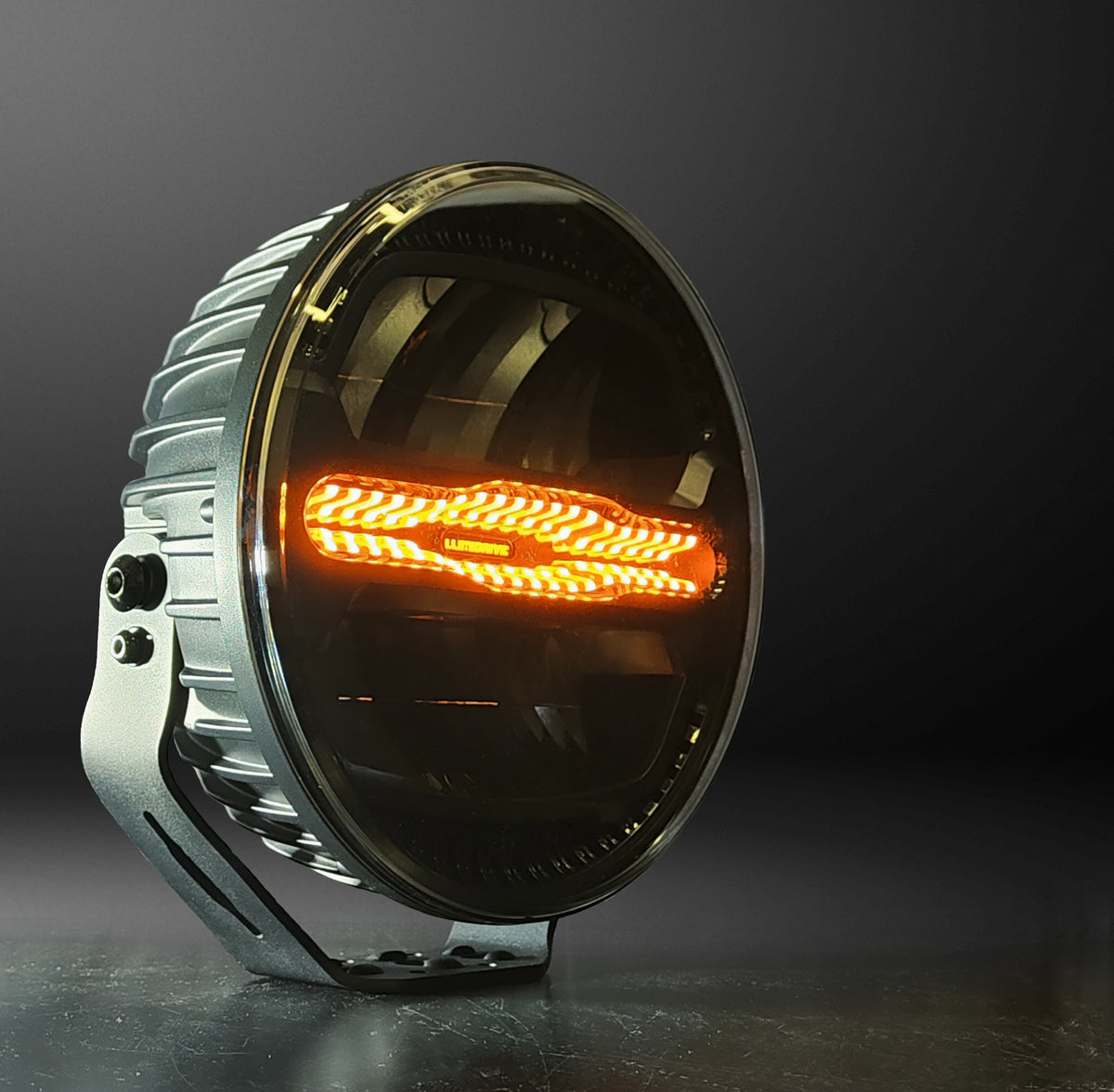

  • Longue portée LED Lumidrive Rayzor 9 pouces avec feu de position orange

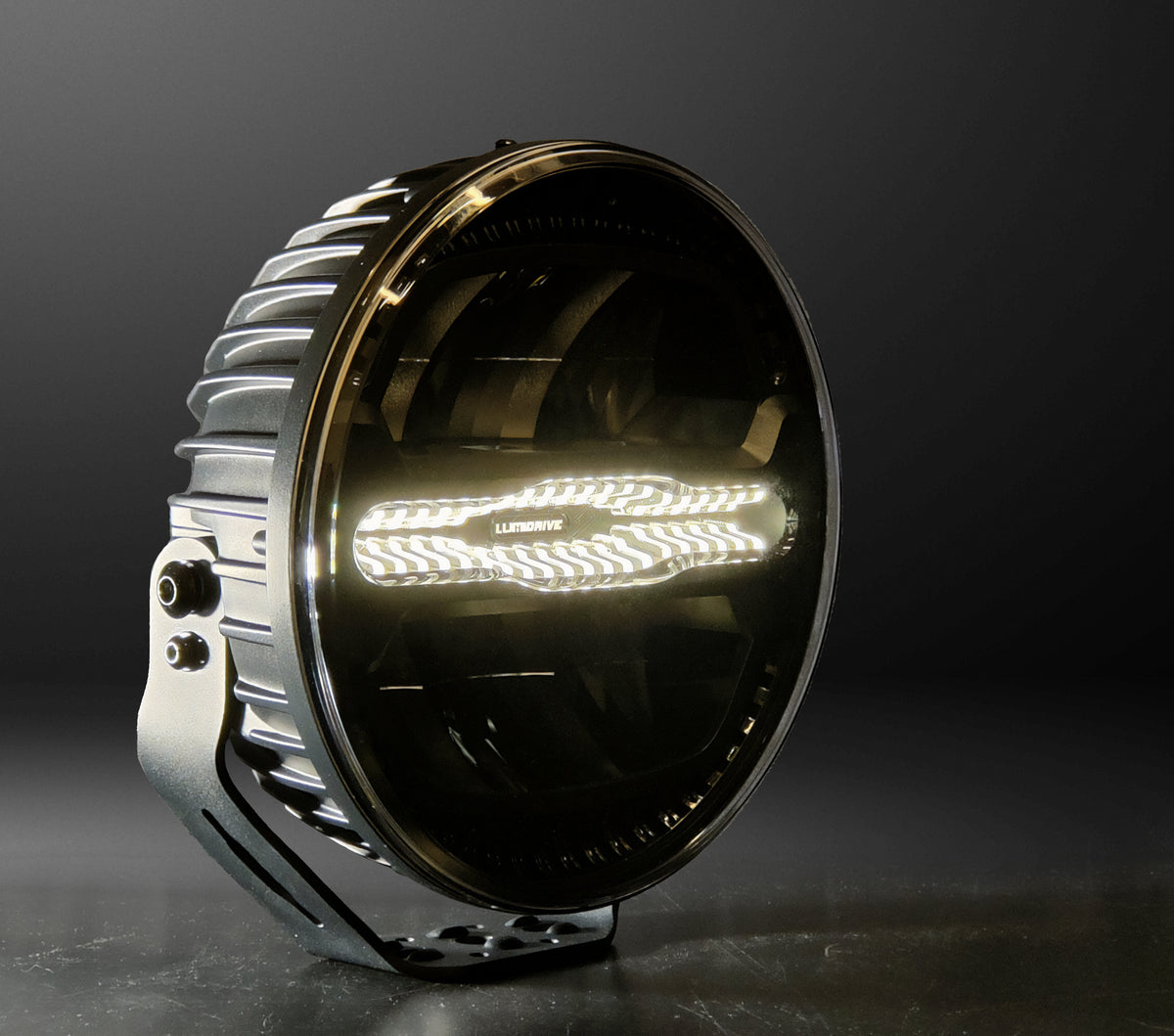

  • Lumidrive Rayzor 9 pouces avec feu de position dynamique blanc

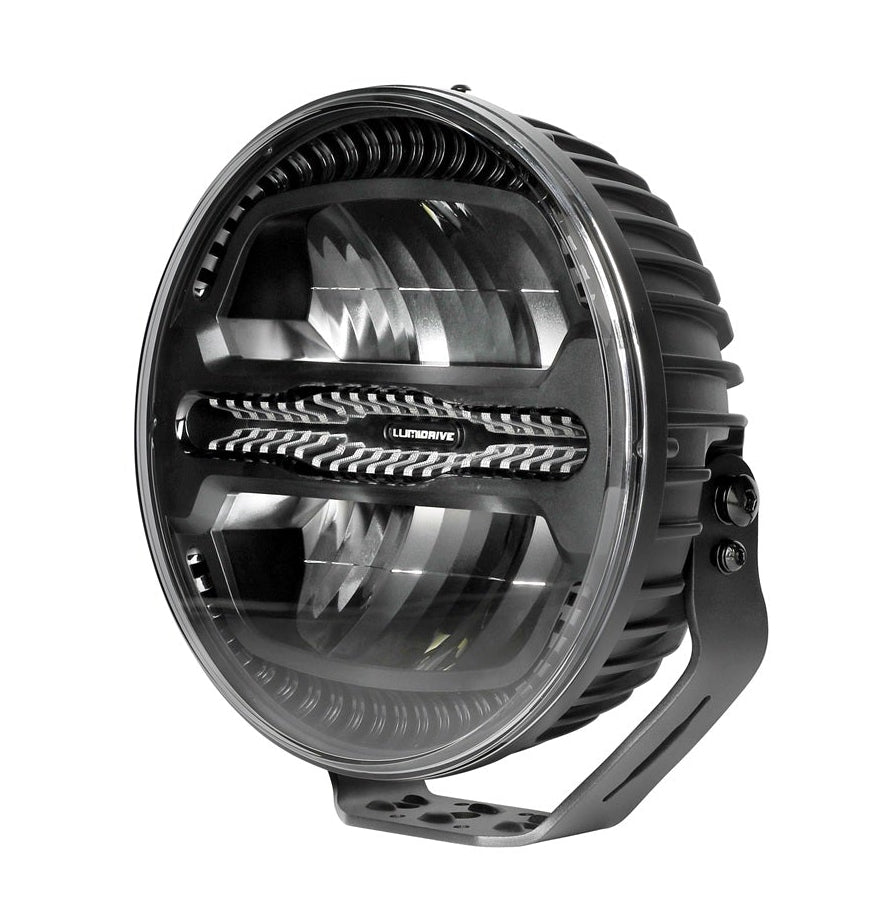

  • Vue trois-quarts de la longue portée LED Lumidrive Rayzor 9 pouces

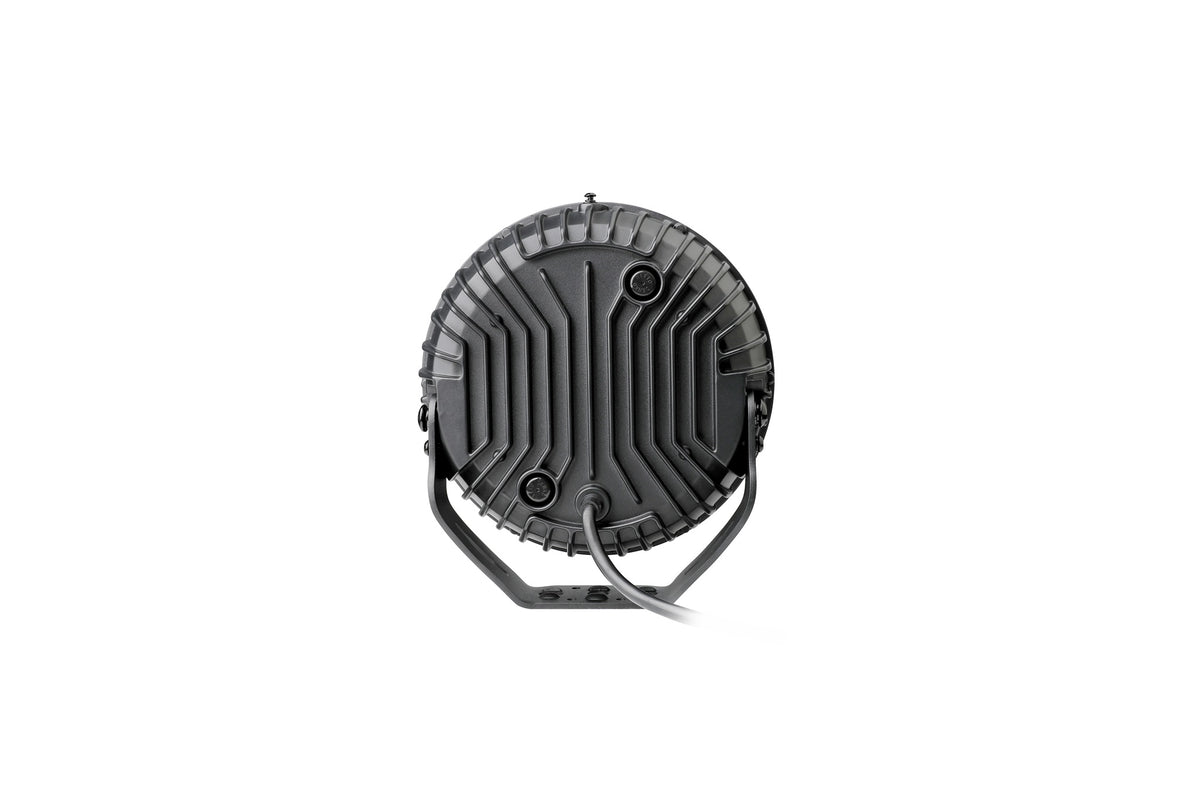

  • Vue arrière de la longue portée LED Lumidrive Rayzor 9 pouces

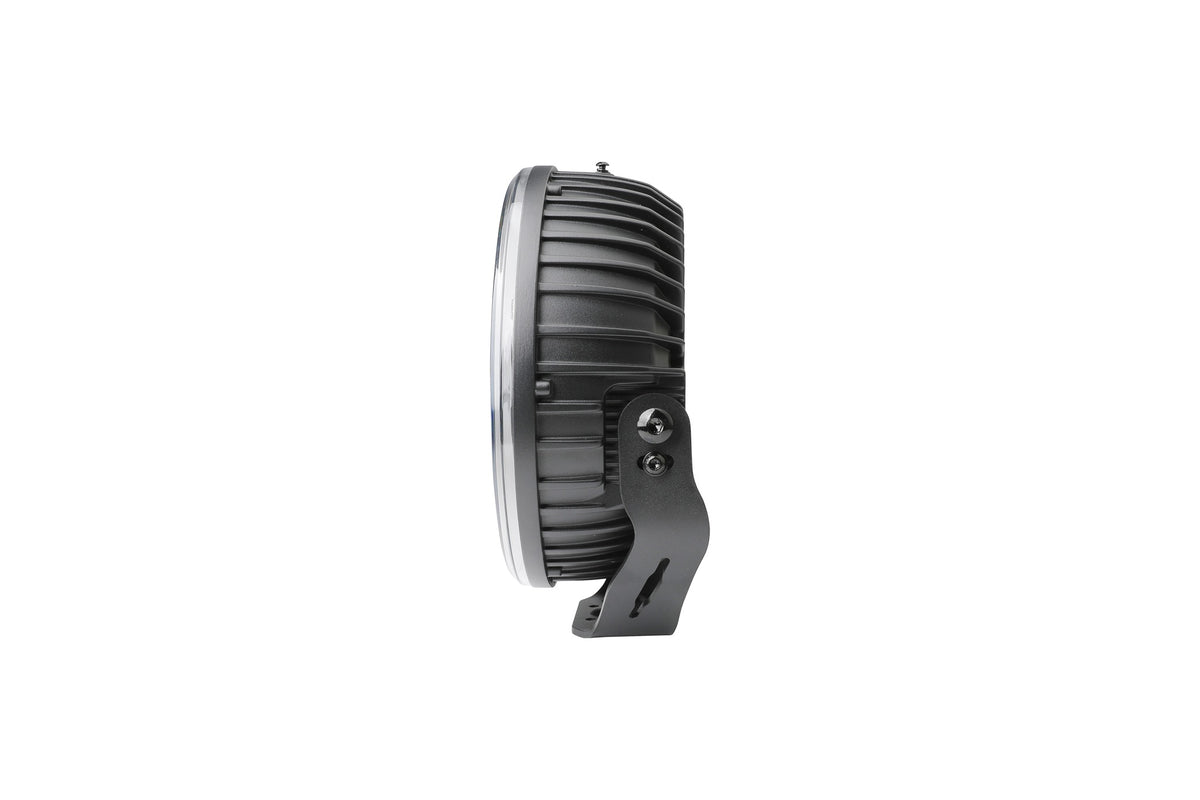

  • Vue laterale de la longue portée LED Lumidrive Rayzor 9 pouces
  • 9" 95W LED Long-Range Driving Light Rayzor with ECE R65 Flash - Lumidrive
  • 9" 95W LED Long-Range Driving Light Rayzor with ECE R65 Flash - Lumidrive
  • Longue portée LED Lumidrive Rayzor 9 pouces avec feu de position orange
  • Lumidrive Rayzor 9 pouces avec feu de position dynamique blanc
  • Vue trois-quarts de la longue portée LED Lumidrive Rayzor 9 pouces
  • Vue arrière de la longue portée LED Lumidrive Rayzor 9 pouces
  • Vue laterale de la longue portée LED Lumidrive Rayzor 9 pouces
  • 9" 95W LED Long-Range Driving Light Rayzor with ECE R65 Flash - Lumidrive
  • 9" 95W LED Long-Range Driving Light Rayzor with ECE R65 Flash - Lumidrive

9" 95W LED Long-Range Driving Light Rayzor with ECE R65 Flash - Lumidrive

€228,69

Dès 4 exemplaires identiques : profitez de 5 % de remise, appliquée automatiquement au panier.

In stock
Visa Mastercard Apple Pay Google Pay PayPal Shop Pay

The Lumidrive Rayzor 9" is a multifunction long-range LED driving light combining long-distance illumination, a dynamic position light, and a strobe function.

Its elliptical beam produces 10,500 lumens and reaches 470 m at 1 lux, with a beam width of 70 m. Its dynamic position light can be set to either white or amber, while the strobe function includes an ECE R65-approved mode.

With its Ultra Black design and highly refined signature position light, the Rayzor combines high-performance illumination, signaling, and visual identity in a single light.

Technical Specifications

Power:95 W
Number of LEDs:24
Luminous flux:10,500 lm
Beam:elliptical
Lighting range:470 m at 1 lux
Beam width:70 m
Supply voltage:10–30 V DC
Position light:dynamic, selectable white or orange
Flash function:4 modes
Approved flash mode:ECE R65
Protection rating:IP67 / IP69K
Housing:aluminum
Lens:polycarbonate
Bracket:304 stainless steel with black coating
Weight:2.75 kg
Approvals:ECE R10, ECE R65, ECE R148, ECE R149

Installation & dimensions

Dimensions:228.5 × 228.5 × 97.8 mm
Installation:adjustable bracket mount
Bracket:304 stainless steel, black finish
Connection:6-pin DEUTSCH DT connector

Package contents

1 × 9" Lumidrive Rayzor LED long-range driving light
2 × Allen keys
1 × 6-pin DEUTSCH DT connector
1 × Instruction manual

Delivery & returns

We're working quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with additional information. Delivery times vary depending on your location.

Technical expertise

Fast shipping

Selected Brands

In Detail


Long-range lighting and elliptical beam

The 9" Rayzor produces a beam designed to combine distance and width. With a stated range of 470 meters at 1 luxand a width of 70 meters, it maintains a sufficiently wide illuminated area while projecting far ahead of the vehicle.

This distribution is particularly useful for vehicles traveling at night on roads, tracks, or in professional environments requiring good visibility at a distance.

A dynamic light signature

The Rayzor stands out with its integrated position light, composed of a series of small illuminated fins that create an immediately identifiable signature.

The position light is dynamicand its color can be selected between white and orange, allowing the appearance of the light and its integration into the vehicle to be customized.

Integrated ECE R65 flash function

The Rayzor is not limited to long-range lighting. It also features four flash modes:

Single Flash – ECE R65, Double Flash, Triple Flash, and Quint Flash.

Multiple lights can operate in a synchronized or alternatingmanner, a feature particularly useful for professional, emergency, or construction vehicles.

Designed for demanding environments

Its aluminum body, polycarbonate lens, and IP67 / IP69Kprotection rating allow for use in environments exposed to water, dust, and high-pressure cleaning.

The adjustable bracket is made of 304 stainless steel with a black coating, consistent with the dark finish of the light.

4-year warranty.
